Create an Enterprise Application in Microsoft Entra ID for Keycloak

Goal: Register an Enterprise Application in Microsoft Entra so it can be integrated with Keycloak for authentication.

Prerequisites

  • Admin access to Microsoft Entra ID (formerly Azure AD).
  • Access to the Azure Portal: https://entra.microsoft.com.
  • A running Keycloak instance (this guide only covers the Entra side).
  • Organisation alias given by the keycloak operator.

Steps

Step 1 — Log in to Microsoft Entra

  1. Open https://entra.microsoft.com.
  2. Sign in with your administrator account.

Step 2 — Navigate to Enterprise Applications

  1. In the left-hand menu, select Enterprise applications.
  2. Click + New application.

Step 2 — Navigate to Enterprise Applications
Figure 1: Location of 'Enterprise applications' in the Entra menu.

Step 3 — Create a New Application

  1. In the Browse Azure AD Gallery window, select Create your own application.
  2. Enter a name (e.g., Digitalboard).
  3. Choose Register an application to integrate with Microsoft Entra ID.
  4. Click Create.

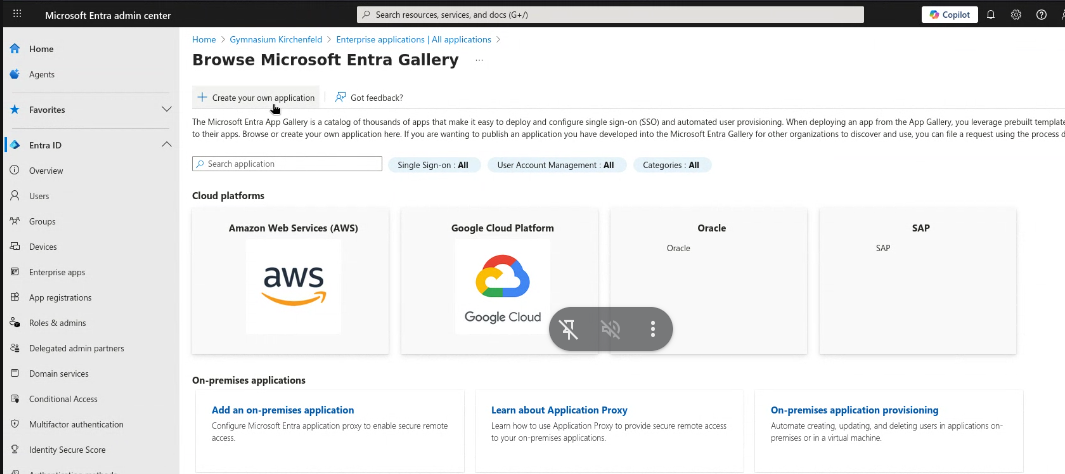

Step 3 — Create new application
Figure 3A: Microsoft Entra Gallery.

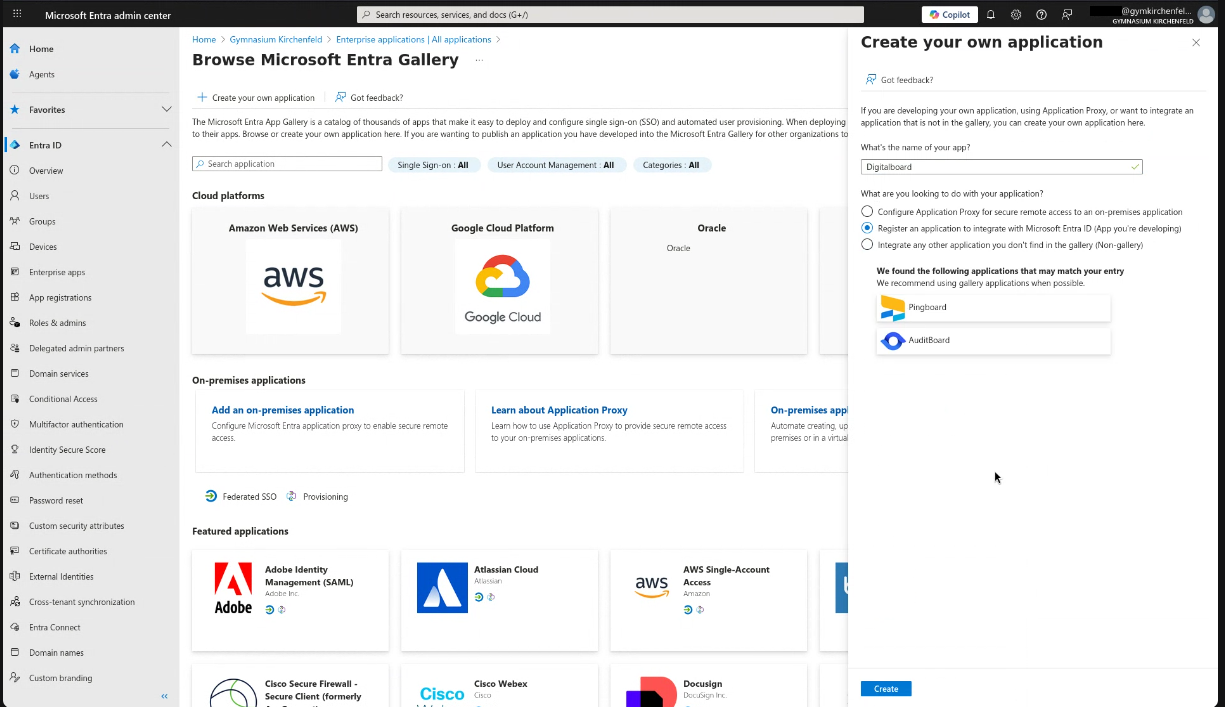

Step 3 — Create new application
Figure 3B: Create an application for Keycloak.

Step 4 — Configure the New Application

  1. You are redirected to a page titled Register an application.
  2. Fill in:
    • Name: Digitalboard (should be prefilled)
    • Supported account types: Choose according to your needs:
      • Single tenant (only your organization, default for Digitalboard)
      • Multitenant (cross-organization)
    • Redirect URI: Select Web and enter
      https://auth.digitalboard.ch/realms/Digitalboard/broker/<your alias>/endpoint.
      <your alias> is the alias given by Digitalboard for your organization. If unsure, ask Digitalboard.
  3. Click Register.

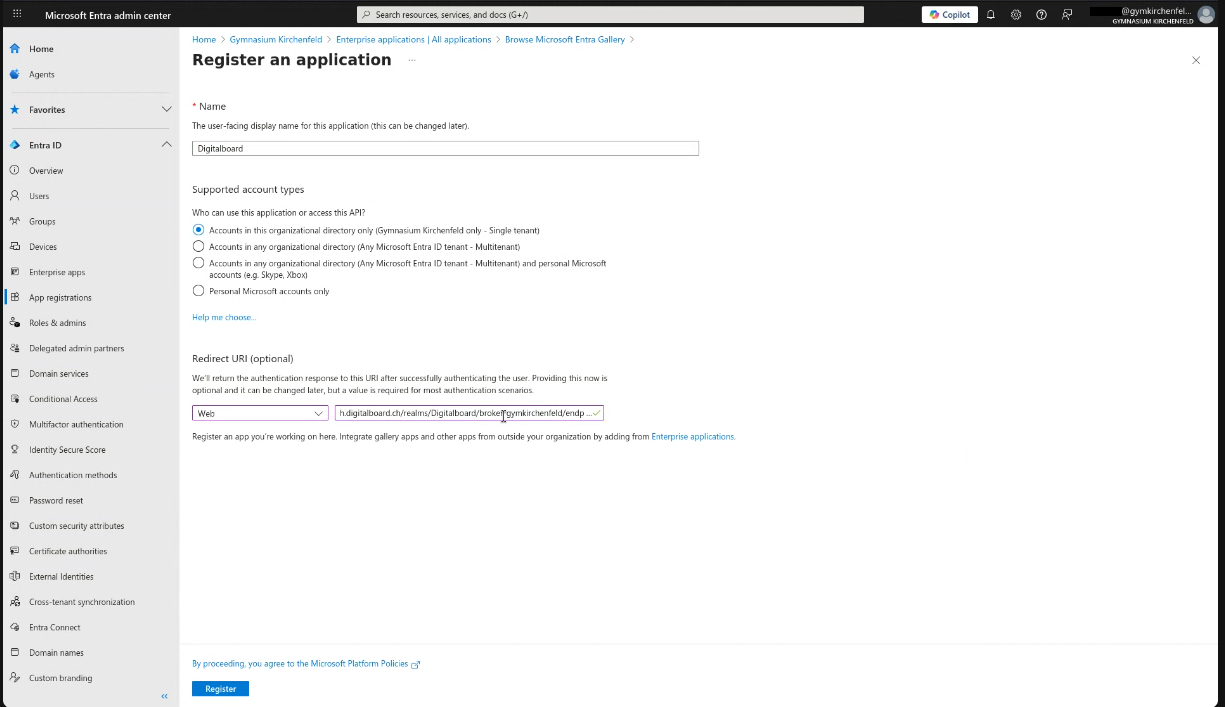

Step 4 — Application Registration
Figure 4A: Register the application.

Step 5 — Collect Application Details

  1. In the left-hand menu, click on Enterprise applications.
  2. The new application should now be searchable in the list. Click on it.
  3. Note down:
    • Application (client) ID
    • Directory (tenant) ID
  4. These are needed to configure Keycloak with the identity provider.

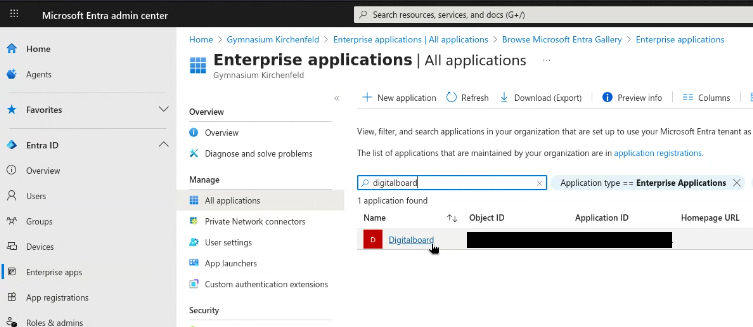

Step 5 — Configure Single Sign-On
Figure 5A: Registered application inside Enterprise applications list.

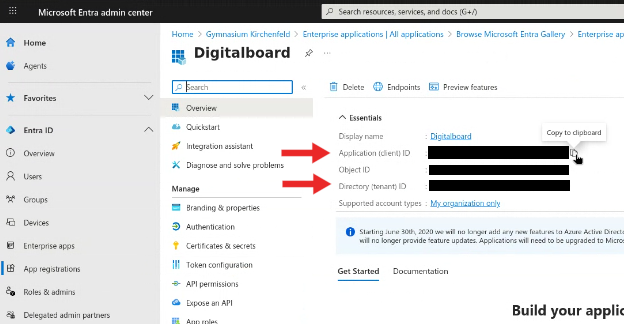

Step 5 — App details
Figure 5B: Application ID and Tenant ID in the overview page.

Step 6 — Create a Client Secret

  1. Select App registrations in the left-hand menu.
  2. A list of app registrations will open. Search for your newly registered application (e.g., Digitalboard) and click on it.
  3. In the left menu, select Certificates & secrets.
  4. Under Client secrets, click + New client secret.
  5. Add a description (e.g., Keycloak Secret, or if it expires annually, 2025) and set an expiration (e.g., 12 months).
  6. Click Add.
  7. Copy and save the generated Value immediately (you won’t be able to see it again later). The secret is required to configure Keycloak with the identity provider.

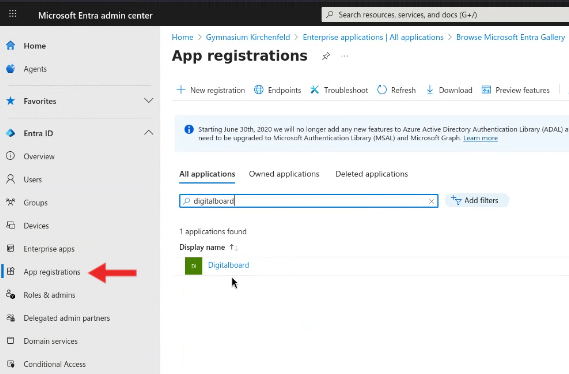

Step 6 — App registrations list
Figure 6A: App registrations list.

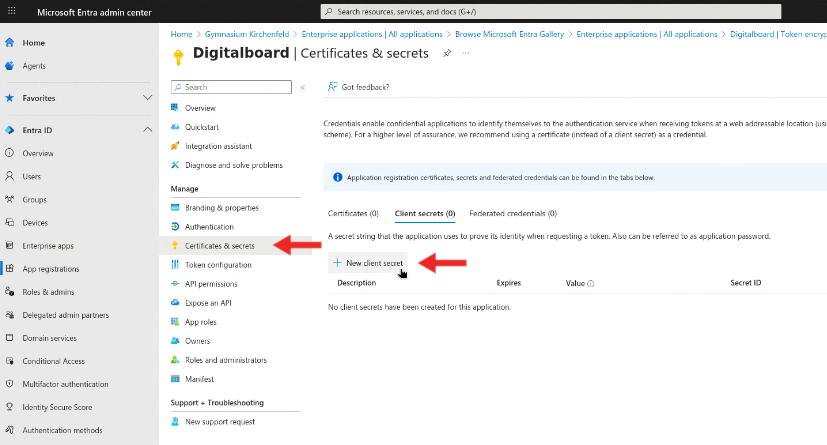

Step 6 — Client secret
Figure 6B: Creating the client secret.

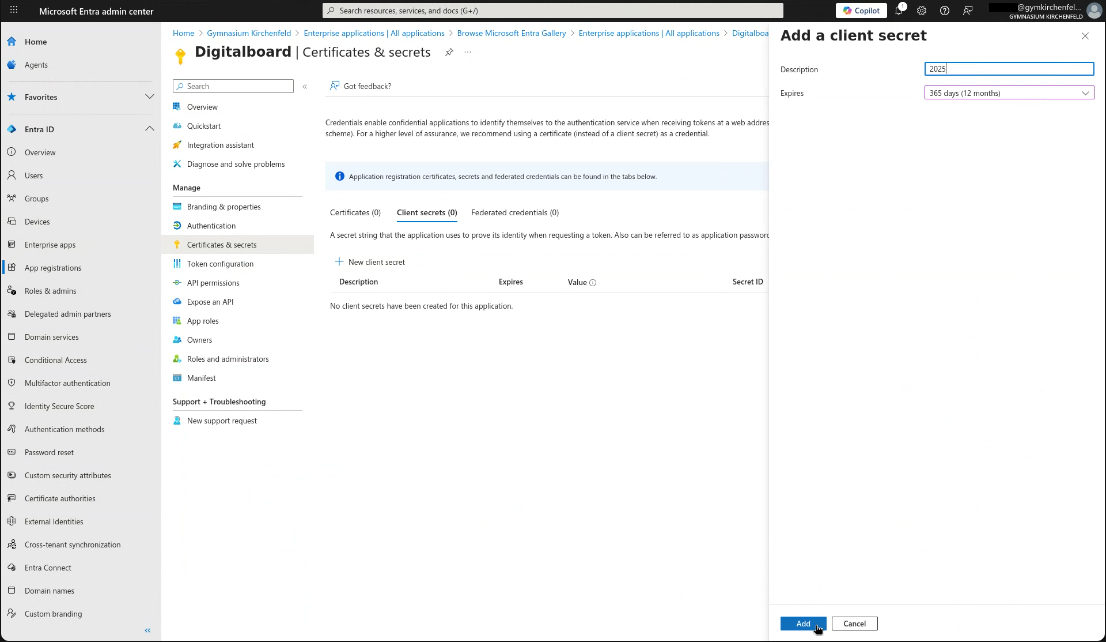

Step 6 — Client secret
Figure 6C: Creating the client secret.

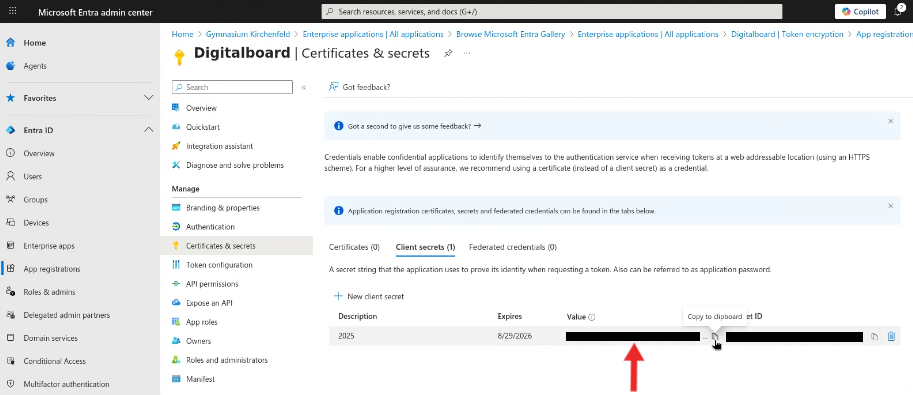

Step 6 — Copy Client secret
Figure 6D: Copying the client secret.

Step 7 — Copy Endpoint

  1. In the left menu, select Overview.
  2. Click on the button Endpoints.
  3. Copy and save the value of OpenID Connect metadata document. This is required to configure Keycloak with the identity provider.

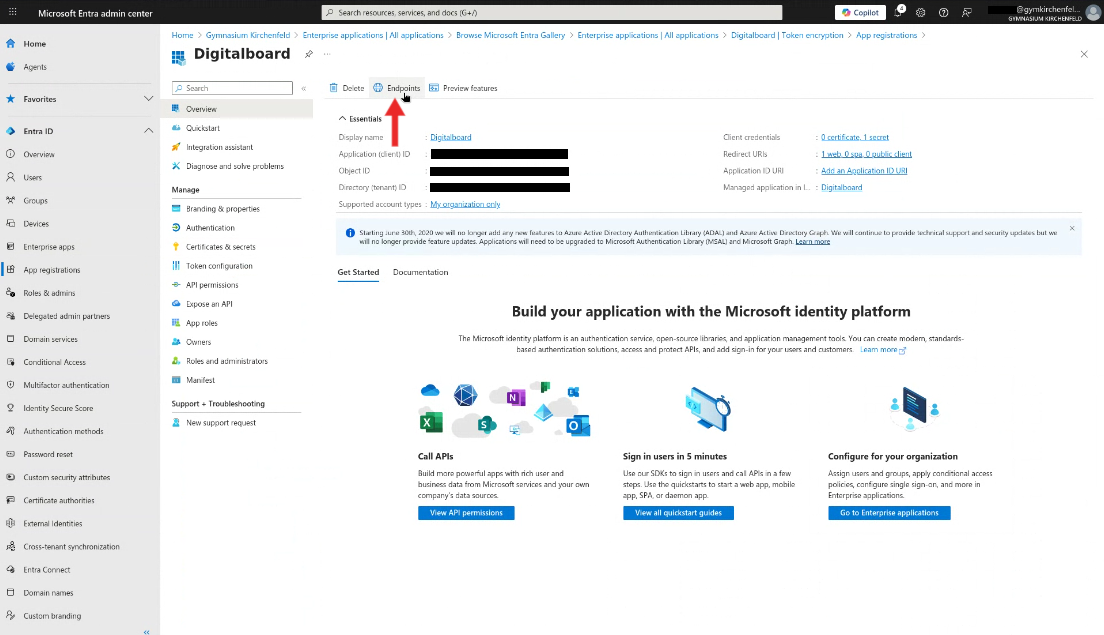

Step 7 — Endpoint Button
Figure 7A: The endpoint button.

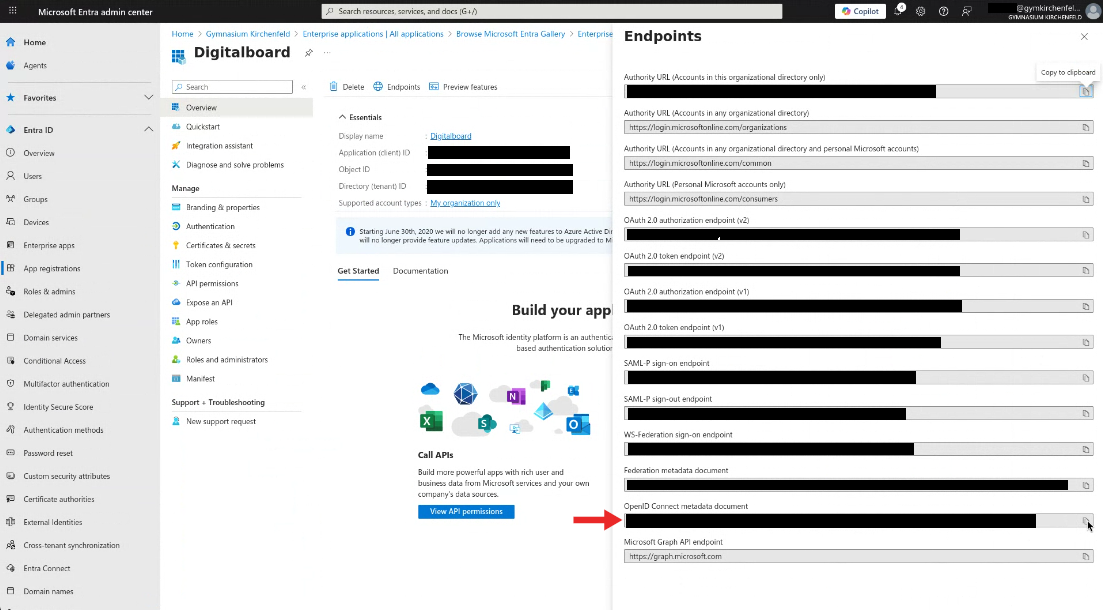

Step 7 — Endpoint List
Figure 7B: The list with endpoints.

Step 8 — Configure Claims

  1. In the left menu, select Token configuration.
  2. Click Add optional claim.
  3. Select the following claims:
    • email
    • family_name
    • given_name
    • onprem_sid
  4. Click Add.
  5. A dialog appears: Some of these claims require OpenID Connect scopes to be configured…
  6. Check the box in the dialog and click Add. This will automatically add the required scopes to the application.

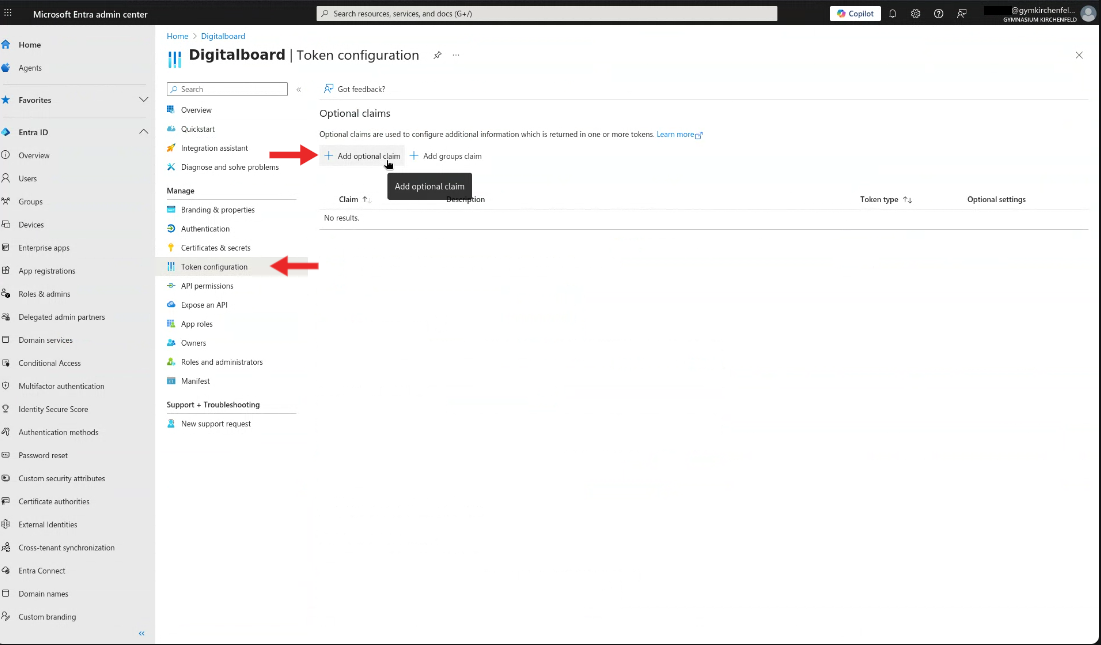

Step 8 — Token configuration page
Figure 8A: Token configuration page.

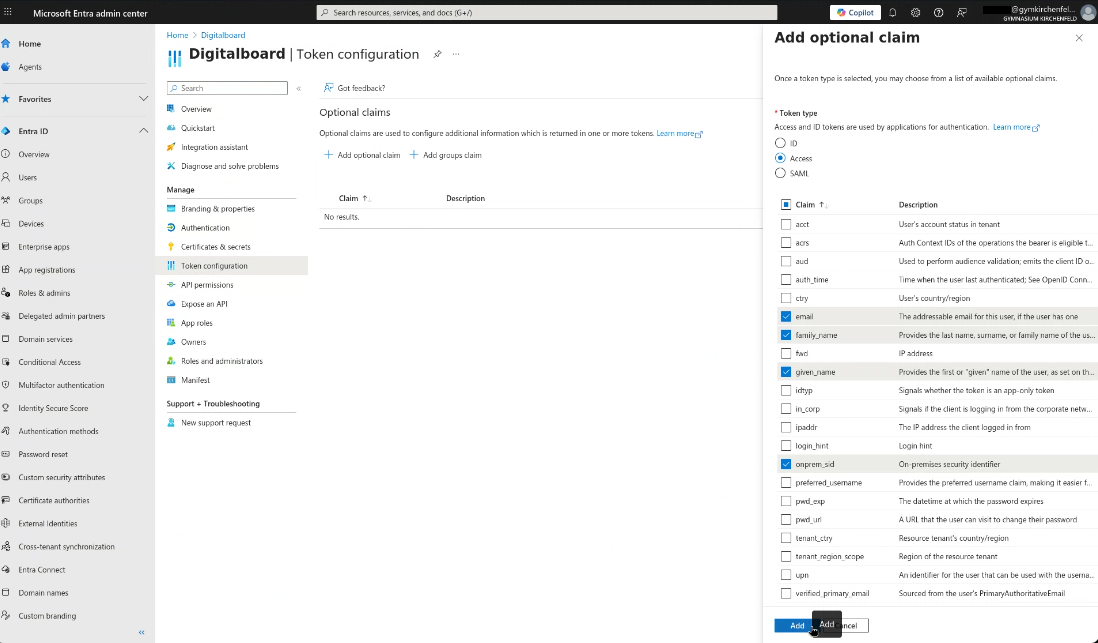

Step 8 — Adding claims
Figure 8B: Adding claims.

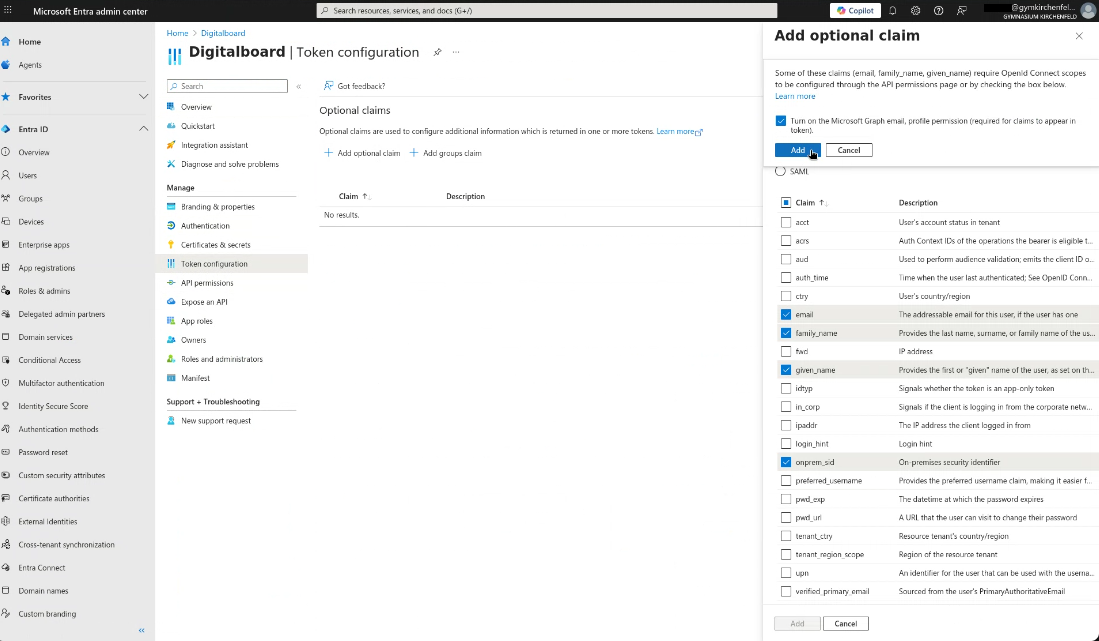

Step 8 — Scopes dialog
Figure 8C: Scopes dialog.

Step 9 — Grant Admin Consent for Scopes

  1. Go to API Permissions.
  2. Click Grant admin consent for .
  3. A confirmation dialog will open. Click Yes to grant admin consent.

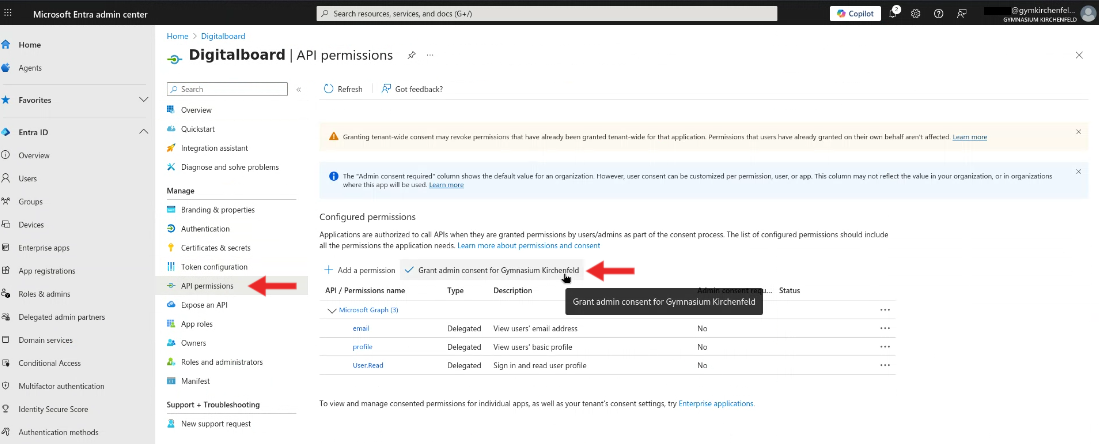

Step 9 — API permissions page
Figure 9A: API permissions page.

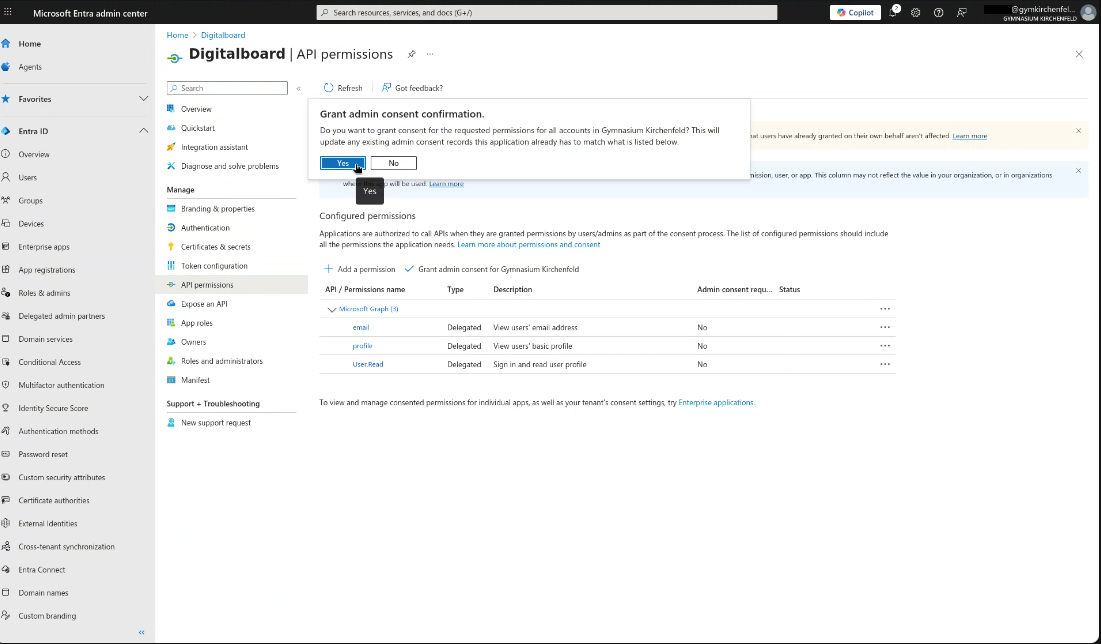

Step 9 — Admin consent confirmation dialog
Figure 9B: Admin consent confirmation dialog.

Step 10 — Limit Access to the Application

This step is only needed if you don’t want all directory users to have access.

  1. Go back to the created Enterprise application (see Step 5).
  2. Click on Properties in the left menu.
  3. Set Assignment required to Yes.
  4. Click Save. Now only the creator of the application has access.

Step 10 — API permissions page
Figure 10A: API permissions page.

Step 11 — Assign Users or Groups to the Application

This step is only needed if you don’t want all directory users to have access. Requires Step 10.

  1. Click on Users and groups in the left menu.
  2. Click the button + Add user/group.
  3. Under Users and groups, click the blue link.
  4. A new dialog opens, where you can select the users/groups that should have access.
  5. Save the assignment by clicking Select.

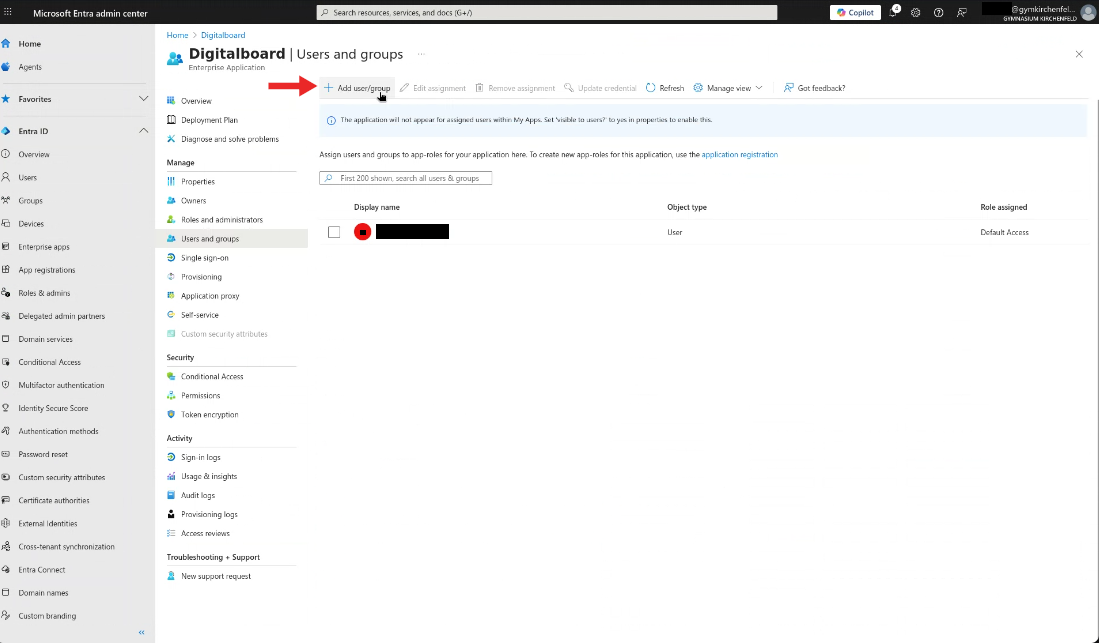

Step 11 — Users and groups page
Figure 11A: Users and groups page.

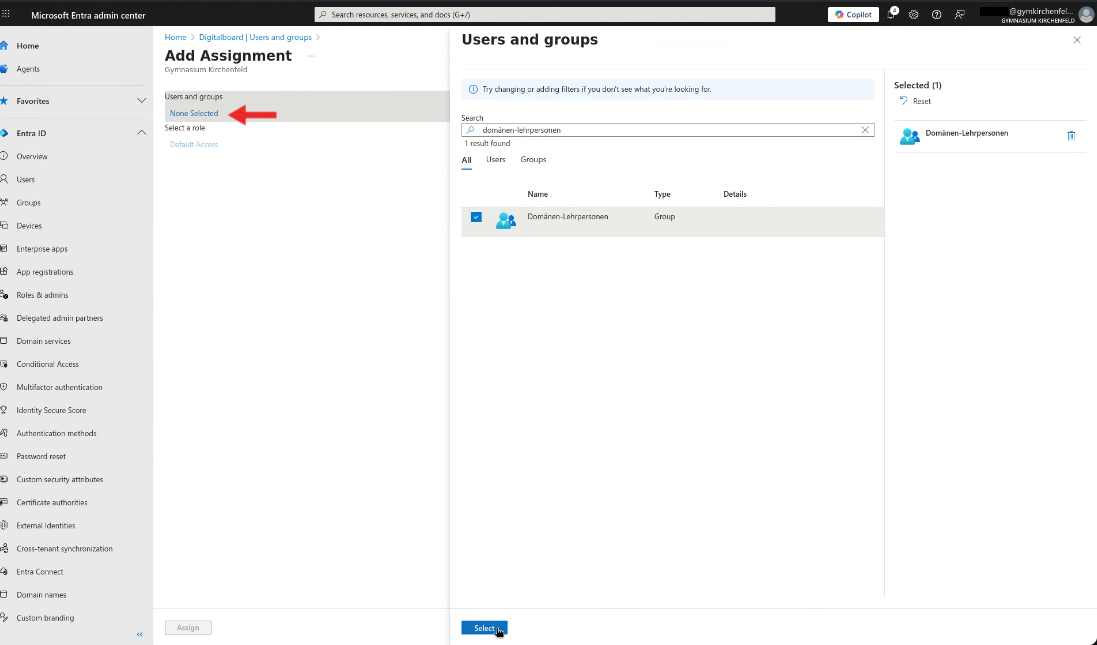

Step 11 — Users and groups assignment dialog
Figure 11B: Users and groups assignment dialog.

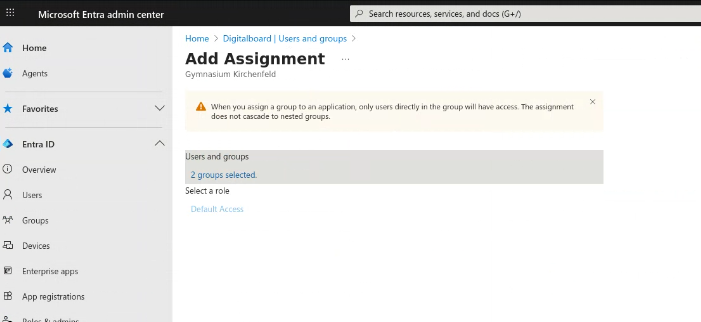

Step 11 — Assigned groups
Figure 11C: Assigned groups.

Next Steps

See the Keycloak Microsoft Entra identity provider guide, or send the following information to your Keycloak operator:

  • Application (client) ID (Step 5)
  • Directory (tenant) ID (Step 5)
  • Application (client) Secret (Step 6)
  • OpenID Connect metadata document URL (Step 7)
